Price on request. Please contact us for a quotation.

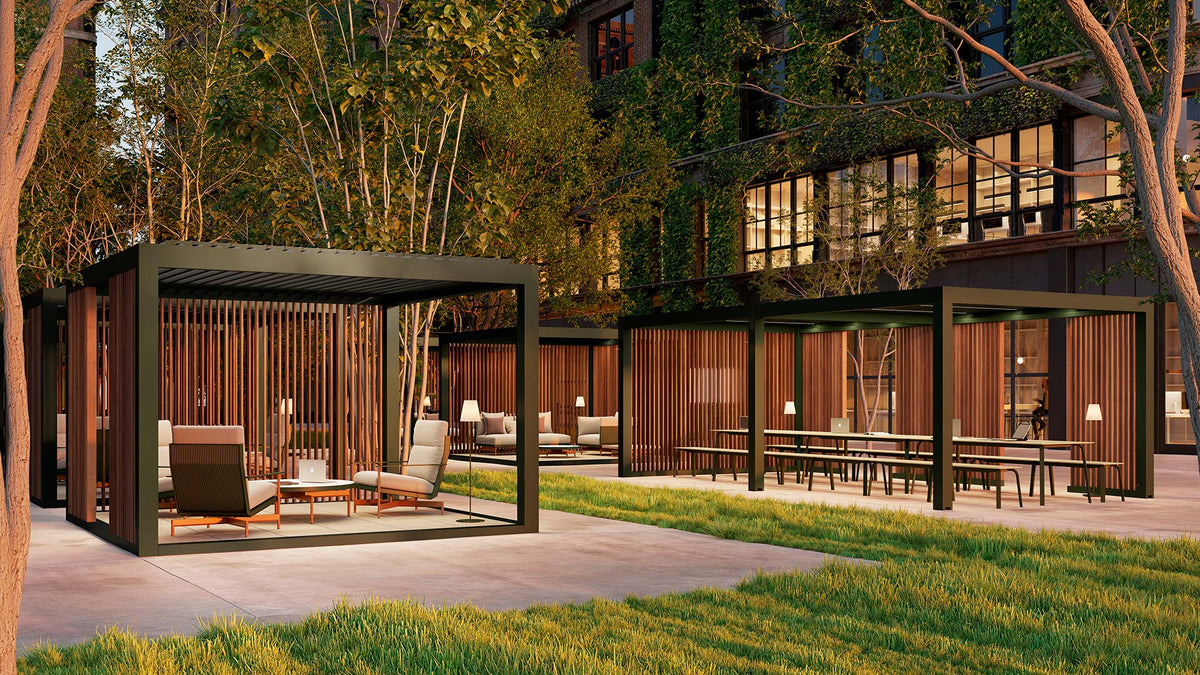

A bioclimatic aluminium pergola with motorised rotating slats, designed to measure for each project. Closed, the slats keep out the rain; opened to 90 degrees after rain they keep draining to the sides so the space below stays dry.
Structure: powder-coated aluminium, 160 x 160 mm columns, concealed screws and invisible post to beam connections
Frame colours: White, White textured, Beige RAL 1013, Bronze, Brown RAL 8014, Silver textured, Grey RAL 7016, Black; bi-colour option
Configurations: self-supporting, parallel or perpendicular slats against a wall, or between walls; max. span 4.2 to 7 m, max. projection 4.2 to 6 m depending on the type
Operation: one motor per module, choice of slat opening direction (up to 130 degrees)
Wind class: class 6 according to UNE-EN 13561; extra post to beam reinforcement possible for snow or wind loads
Options: LED lighting in slats and structure, full perimeter enclosure: folding or sliding tempered glass enclosure, motorised screen up to 500 cm
